ZOOMLION ZTC800V552 Lifting Machinery Truck Crane
Model:
ZTC800V552
View All >
Category:
Lifting Machinery
Product:
Truck Crane
Brand Name:
ZOOMLION
Dimension (mm):
15100×2850×3820mm
Operating weight (kg):
50ton
Origin:
China, Hunan
Key Attributes
Max. Lifting Capacity:
80ton
Max. Lifting Height:
67m
Main Boom Length:
49m
Number of Axles:
4
Boom Sections:
5
Engine Brand:
ZOOMLION
Vehicle curb weight:
49,805kg
Front axle load:
24,000 kg
Rear axle load:
26,000kg
Longitudinal distance of outriggers:
6.38m
Packaging & Shipping
Overall Dimensions (L×W×H):
15100×2850×3820mm
Overall Weight:
50ton
Shipping Method:
RO-RO
Delivery Period:
30days
Certificate:
CO, ISO
Origin:
China, Hunan
HS Code :
8705109200
Detailed Specifications

Products Description

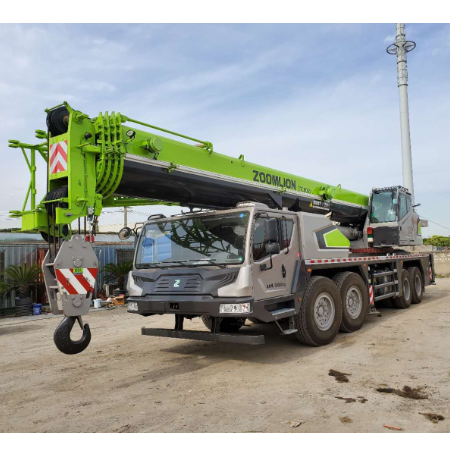

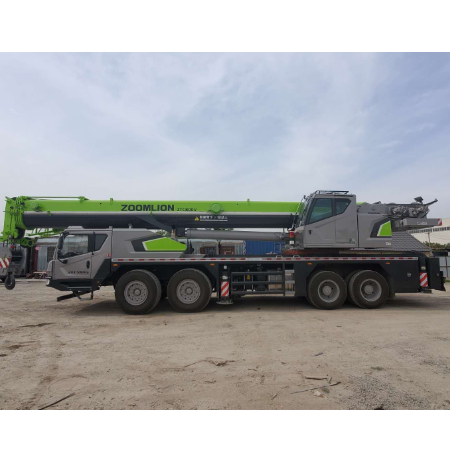

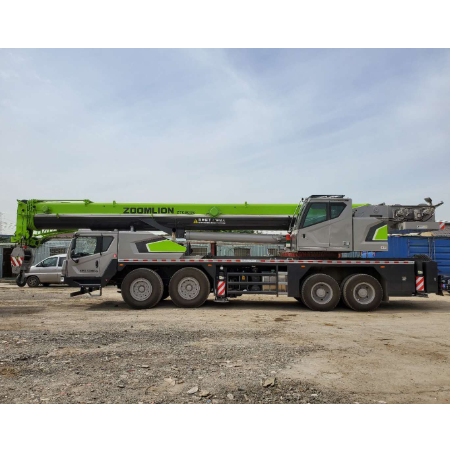

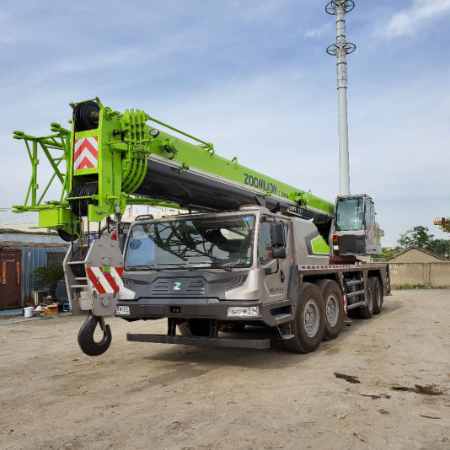

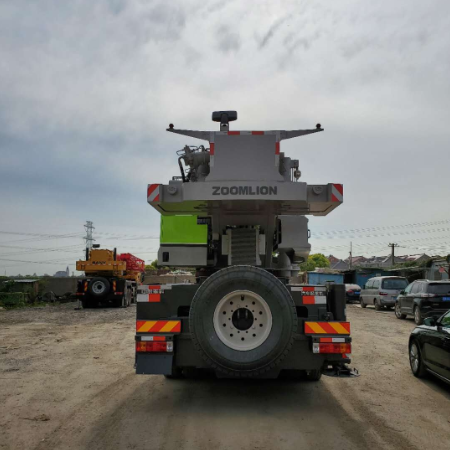

ZOOMLION ZTC800V552 80 Ton Truck Crane for Bridge Building and Construction

The Zoomlion ZTC800V552 is a premium-class 80-ton hydraulic truck crane engineered for high-load lifting, operational efficiency, and field durability. Built using high-grade structural components, this crane ensures long-term reliability even in the most demanding job sites.

Its 49-meter main boom offers outstanding reach and lifting height, while the 15-ton counterweight ensures stable and balanced lifting operations across various terrains. With a maximum lifting moment of 3180 kN·m, the crane delivers superior hoisting power, making it ideal for tasks such as bridge construction, wind turbine assembly, and large-scale industrial lifting.

The machine is powered by the Weichai WP12.357E50 engine, offering high torque and energy efficiency. Its advanced hydraulic system and intelligent control interface enhance safety, load management, and operator comfort. A well-designed operator cabin improves visibility and control with intuitive displays and ergonomic seating, reducing operator fatigue during long working hours.

The ZTC800V552 combines high performance with robust build quality, ensuring a long lifecycle and reduced maintenance downtime.

Product Paramenters

ItemUnitValue
Working performanceMax. rated lifting capacitykg
Max. load moment of basic boomkN.m3180
Max. load moment of main boom(fully extended)kN.m1710
Max. lifting height of basic boomm13.8
Max. lifting height of main boomm49.8
Max. lifting height of jibm67.0 (73.0)
Working speeds    Max. hoist rope speed(Main winch)m/minDrum 4th layer
Max. hoist rope speed(Auxiliary winch)m/min≥110
Boom demrricking up times65
Boom demrricking up times145
Slewing  speedr/min1.6
DrivingMax. driving  speedkm/h
Max. gradeability%40
Turning diameterm24
Min.  ground clearancemm270
Oil consumption per hundred kilometersL46
MassDeadweight in driving conditionkg
Complete vehicle kerb masskg49805
Front axle loadkg24000
Rear axle loadkg26000
DimensionOverall dimensions(L×W×H)mm
Longitudinal distance between outriggersm6.38
Transversal distance between outriggersmFor completely extended outriggers: 8.0 m;
For intermediately extended outriggers: 5.3 m
Tail slewing radiusmm4390
Main boom lengthm12.6 – 49.0
Main boom angle°-2 - 80
jib lengthm10.7,17.5
Offset°0,15,30


ZTC800V552 (4).jpgZTC800V552 (5).jpgZTC800V552 (6).jpgZTC800V552 (7).jpg
