HELI CPD35 Logistics Machinery Forklift
Model:
CPD35
View All >
Category:
Logistics Machinery
Product:
Forklift
Brand Name:
HELI
Dimension (mm):
2560*1241*2180
Operating weight (kg):
5500kg
Origin:
China
Key Attributes
Rated Load Capacity:
3500KG
Tyre Type:
Pneumatic Tire
Load Center Distance:
500mm
Power Type:
Electric Power
Mast Type:
2 Stage/3 Stage
Fork Length:
1070mm
Engine emission:
3-6m
Front overhang:
490mm
Mast tilt angle front/rear:
6/10
Max height under working condition:
4230mm
Packaging & Shipping
Overall Dimensions (L×W×H):
2560*1241*2180
Overall Weight:
5500kg
Shipping Method:
by 20GP/40HQ
Delivery Period:
45days
Certificate:
/
Origin:
China
HS Code :
8427109000
Detailed Specifications



Products Description

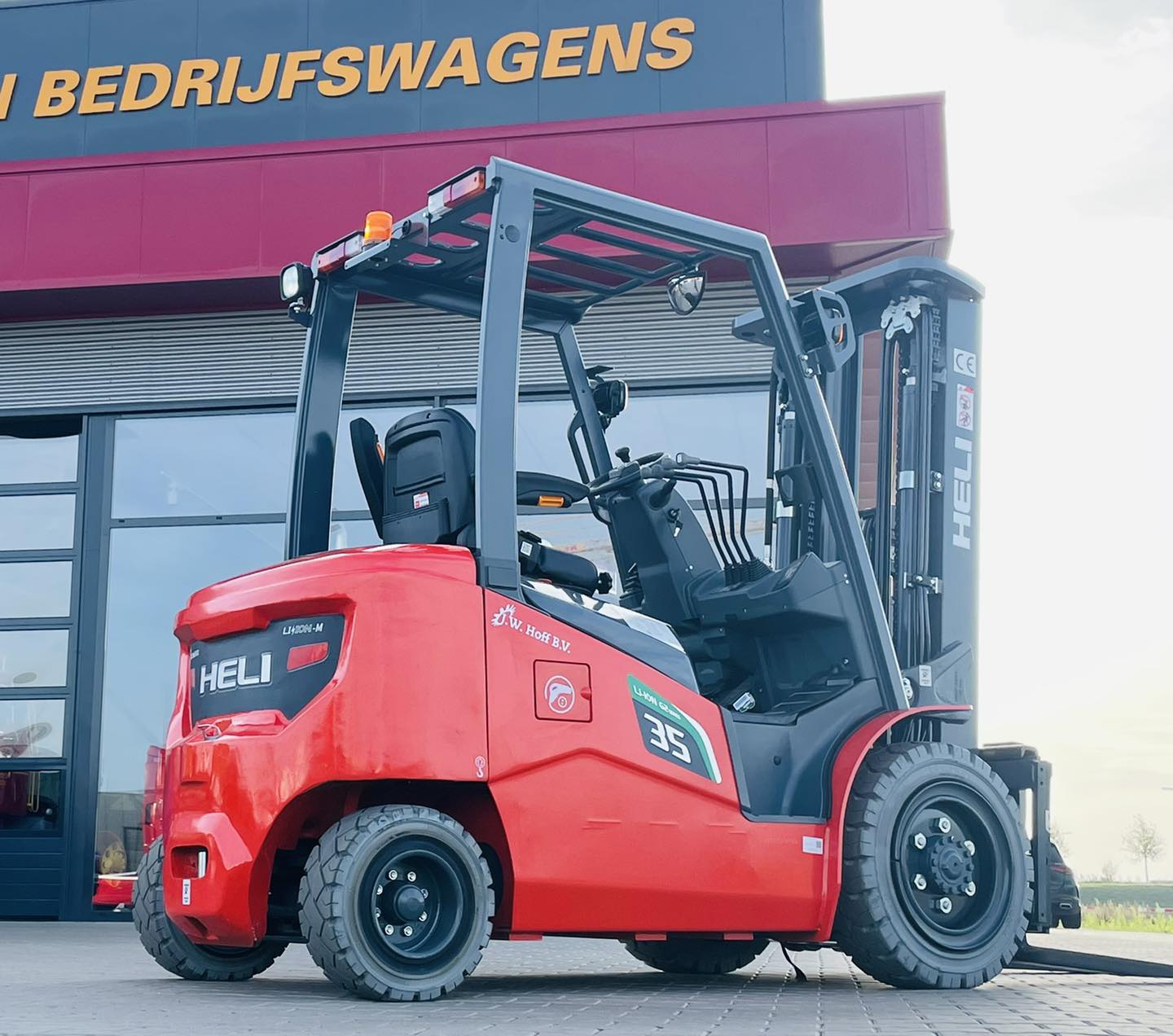

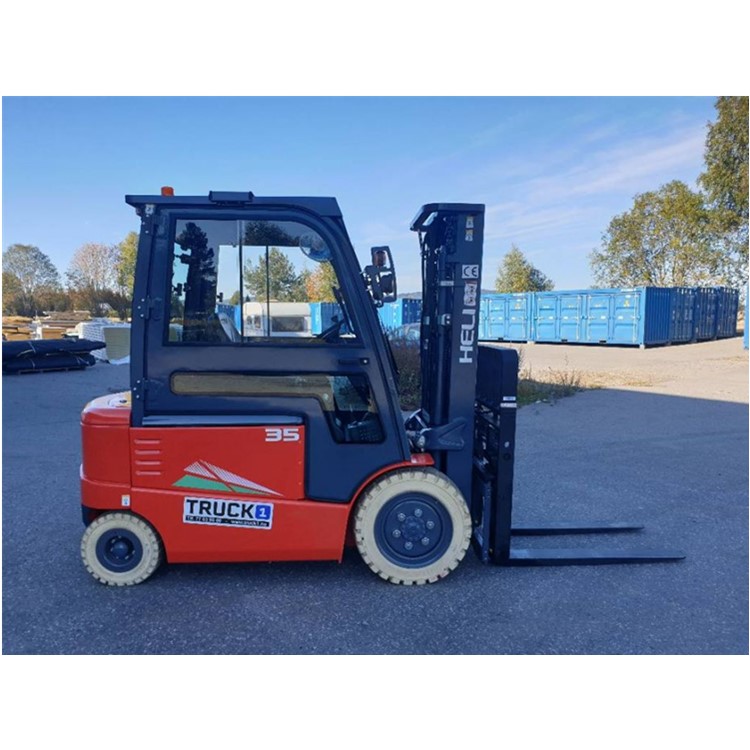

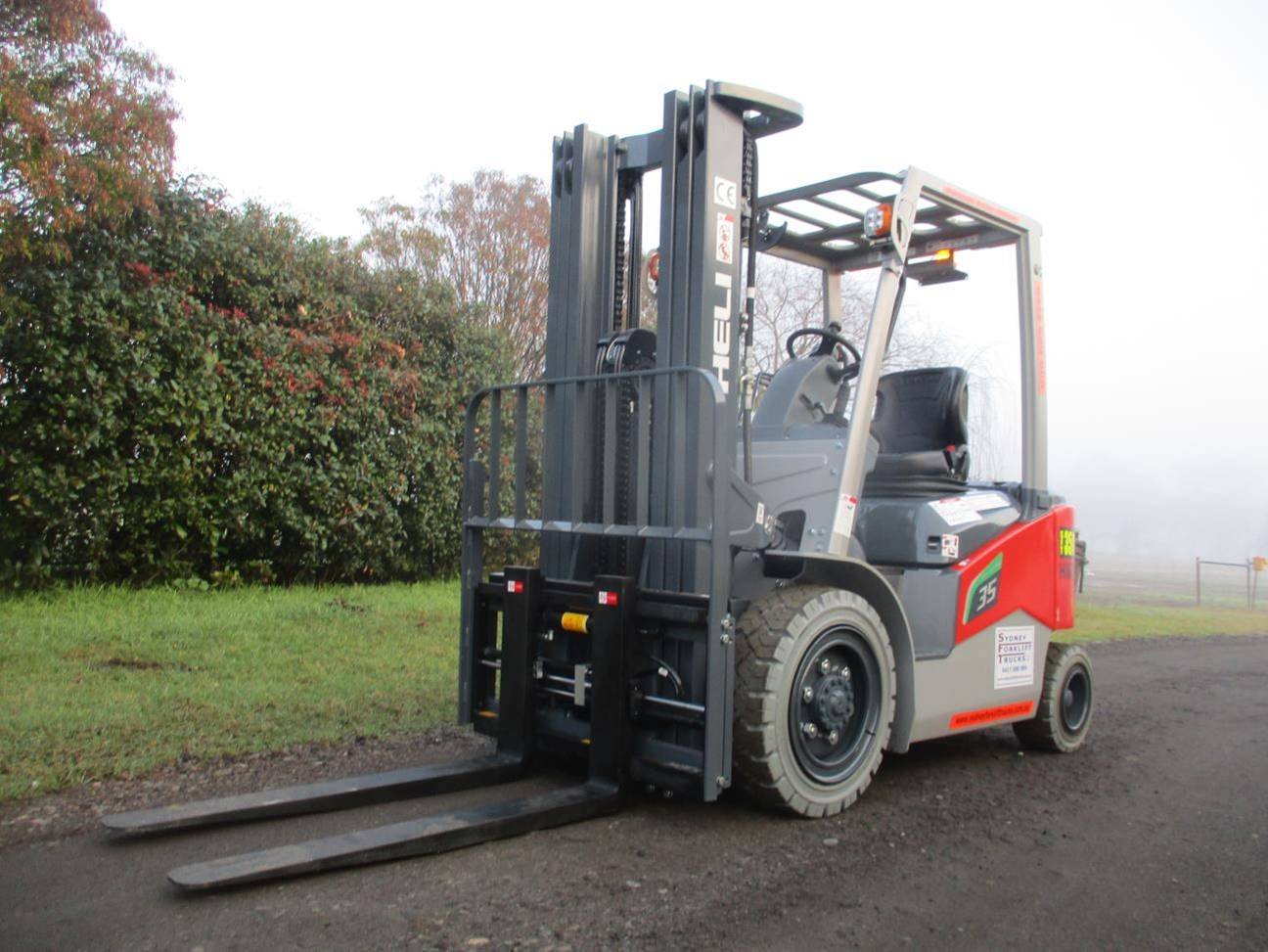

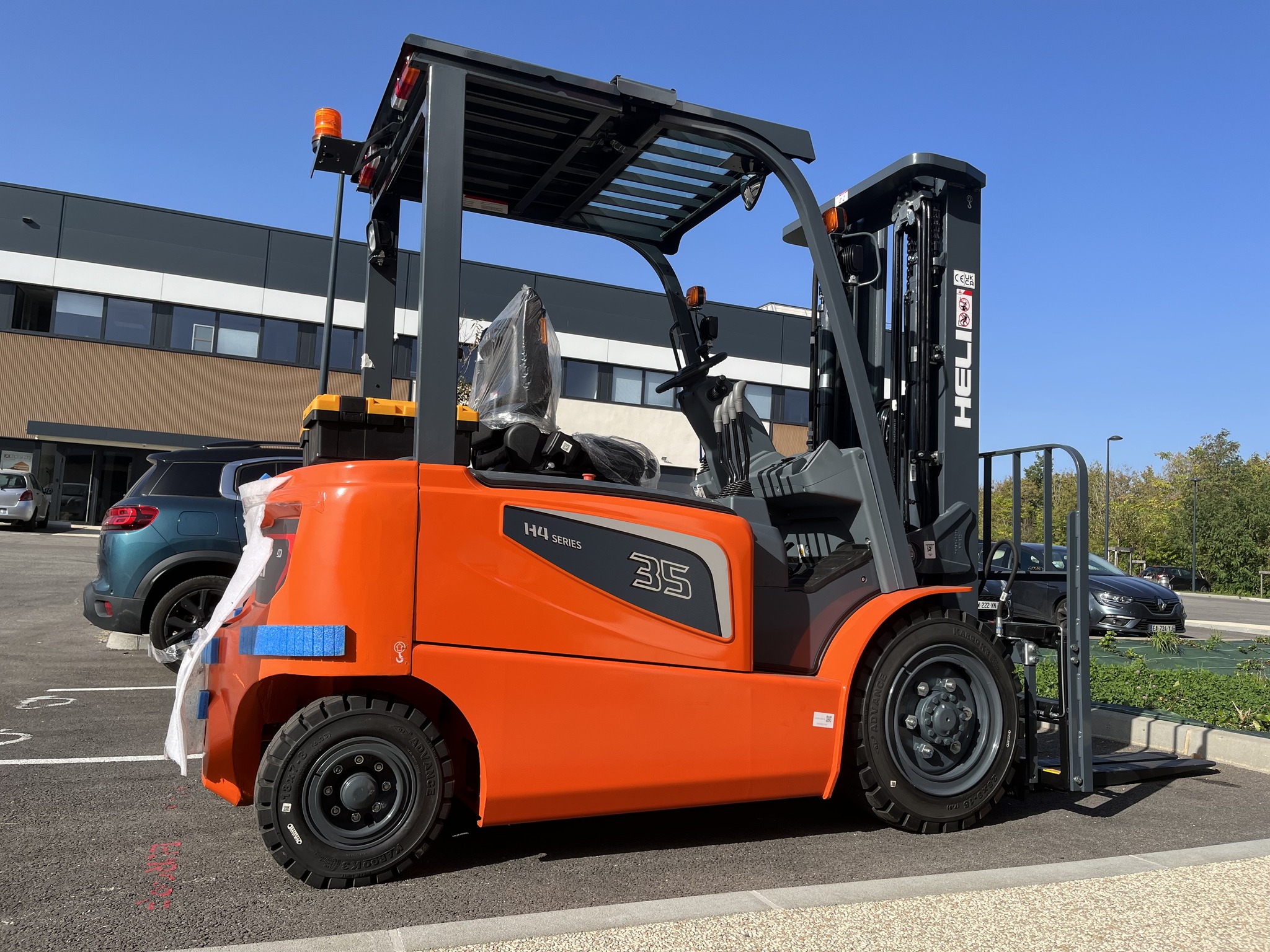

Heli 3.5ton Electric Forklift Cpd35

Features:

1.High Performance and Highlights

(1) Original imported world famous brand controller. After professional adjustment, walking and upgrade control is precision and efficiency, excellent performance. The forklift with regenerative braking, ramp braking , fault self-diagnosis and other functions.(2) Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.(3) Advanced H-type remote drive unit, compact structure, lower gravity center, more reasonable layout, more stable driving.(4) Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.(5) The truck selects mature and economical square iron phosphate lithium battery core and module used by large numbers of commercial vehicles.

2.Fast charging:Fast charging makes truck gap less operation possible,and it can be filled in 2 hours;

3.High efficiency and safety:The charging and dis-charging efficiency is up to 989%,and temperature of thermal runaway is over 600 ºC;

4.Low temperature adaptability:Standard configuration of heating function ensures normal operation flow temperature environment;5.Long service life:the normal charging and discharging cycles is more than 3000 times or 5 years,and capacity retention rate is more than 75%;

Specification


 Category
Parameter ItemValue
General SpecificationsModelCPD35
 Rated Load Capacity3500  kg
 Load Center Distance500  mm
 Power TypeAC  Battery Electric
 Operation TypeSit-down  Counterbalance Forklift
 Service Weight5500  kg
Performance ParametersTravel Speed (Laden / Unladen)14.5  / 15 km/h
 Lifting Speed (Laden / Unladen)0.27  / 0.44 m/s
 Lowering Speed0.42  m/s
 Max Traction Force (Laden)15600  N
 Gradeability  (Laden)15%
 Hydraulic  System Working Pressure21  MPa
Mast & Fork DimensionsStandard Max Lifting Height3000  mm
 Mast  Collapsed Height2180  mm
 Free  Lifting Height150 mm
 Fork  Dimensions50  × 125 × 1070 mm
 Fork  Adjustment Range250  - 1060 mm
 Mast  Tilt Angle (Forward / Backward)6°  / 10°
 Overall  Length (with fork)2560  mm
 Overall  Width1241  mm
 Min. Aisle Width (for 1000mm pallet)3960  mm
 Min.  Aisle Width (for 1200mm pallet)4160  mm
Chassis & Tire ParametersTire TypeSolid Rubber Tire (SE)
 Tire  Size (Front / Rear)289-15 / 187-8
 Wheelbase1685  mm
 Front  Track1000  mm
 Rear  Track950  mm
 Min.  Turning Radius2270  mm
 Min.  Ground Clearance (Under Mast)135  mm
Electrical & Battery SystemBattery  Specification80V / 560Ah
 Battery  Weight1350  - 1650 kg
 Drive  Motor Power16.6 kW (AC, 60min Rating)
 Lifting  Motor Power13  kW (DC)
 Control  SystemMOSFET  Controller





Company Profile
  • 40'HQ Container
  • RoRo Shipmen
  • Railway Transportation
  • Flat Rack Container
  • Bulk Shipment
  • Road Transportation
Our Factories

We have the largest-size factories for construction machinery and industrial equipment in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production.


We cooperate with our factories toattend numerous exhibitions either in China or overseas, such as Canton Fair in Guangzhou,BAUMA CHINA in Shanghai, BICES in Beijing, etc.


Our factories are mainly located inJiangsu、Hunan、Shandong、Henan, Hebei provinces, convenient for travel by airplane,high-speed train and car within 2-3 hours from Shanghai. Welcome to start a wonderful journey with us in China.

our advantages
  • Professional Team
    Rich Experience

  • Stable and Strong
    Supports From Factory

  • Powerful One-Stop
    Service Ability

  • Competitive
    Price

  • 24 Hours
    OnlineQuick Response

  • Guaranteed
    Quality

  • Over 100+ Top
    Brands to Choose

  • Good Company
    Reputation

  • ISO9001 Certificate

  • CTC Certificate

  • CNAB Certificate

  • CCC Certificate

  • CE Certificate

  • ISO9001 Certificate

  • Warranty
    KOMATCO grants our clients a twelve-month-period (1 Year) or 2000-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge as compensation, at our discretion.
  • Spare Parts
    KOMATCO offers perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
  • Installation
    KOMATCO is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list product name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
  • Training
    KOMATCO is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the proper operation of construction machine. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation. We can also send engineers to client's site to do maintenance work.
Zhengzhou, Henan, China
2900m² Office Space
+86-132-1305-6871
+86-132-9836-0959
export@komatco.com www.komatco.com
Suite 2217, Building D, Jianzheng Oriental Center, Zhengdong New District, Zhengzhou, Henan, China
Our Mission:
Strive to Contribute Value to Global Infrastructure by Exporting Quality Chinese Construction Machinery All Over the World
Our Vision:
To be the Most Influential One-Stop Construction Machinery Supplier in the World
Our Values:
Integrity、Passion、Diligence、Efficiency、Professionalism、Win-Win

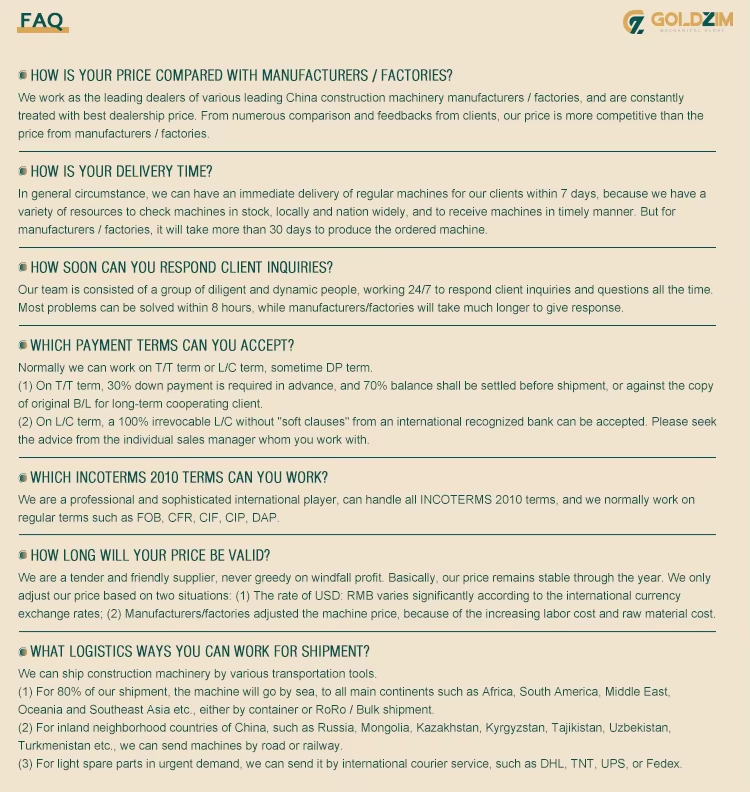

  • What is Your Standard Warranty?
