CHANGLIN GE330D Earthmoving Machinery Crawler Excavator
Model:
GE330D
View All >
Category:
Earthmoving Machinery
Product:
Crawler Excavator
Brand Name:
CHANGLIN
Dimension (mm):
10700*3280*3546
Operating weight (kg):
31380kg
Origin:
China
Key Attributes
Bucket Capacity:
1.6m3
Max. Digging Height:
9617mm
Max. Digging Depth:
6536 mm
Engine Brand:
cummins
Engine Power:
241kW
Digging Force:
182 KN
Length of chassis:
4950mm
Track shoe gauge:
2680mm
Width of chassis:
3280mm
Wheel base of track shoe:
4030mm
Packaging & Shipping
Overall Dimensions (L×W×H):
10700*3280*3546
Overall Weight:
31380kg
Shipping Method:
BULK/RORO/40FR
Delivery Period:
20 working days
Certificate:
ISO
Origin:
China
HS Code :
8429521290
Detailed Specifications

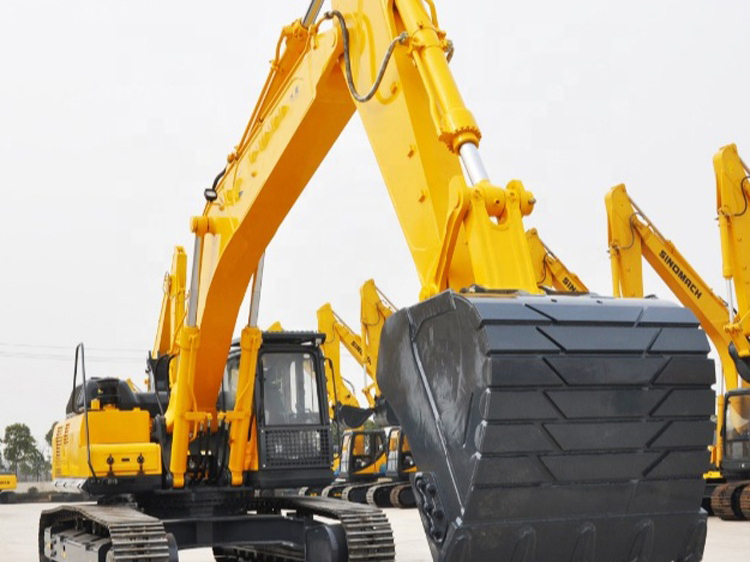

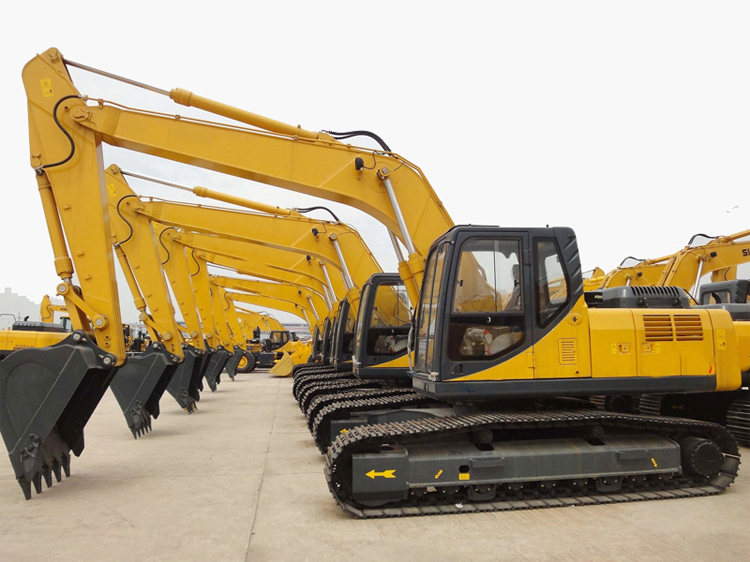

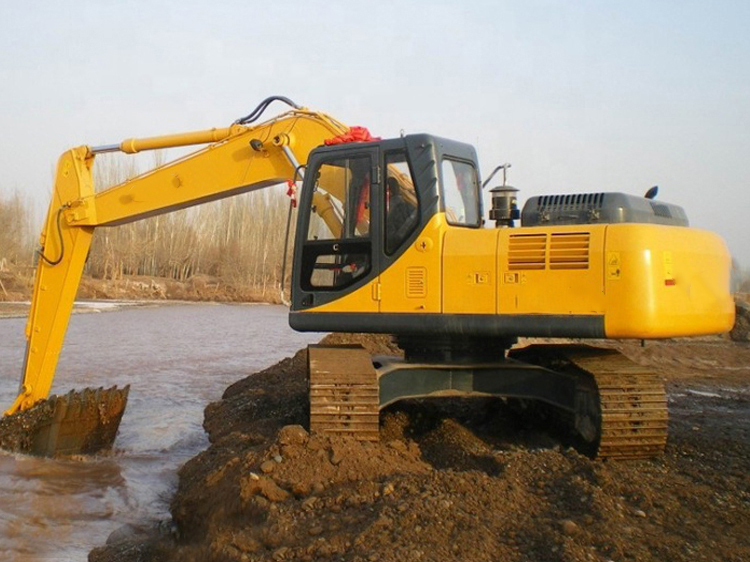

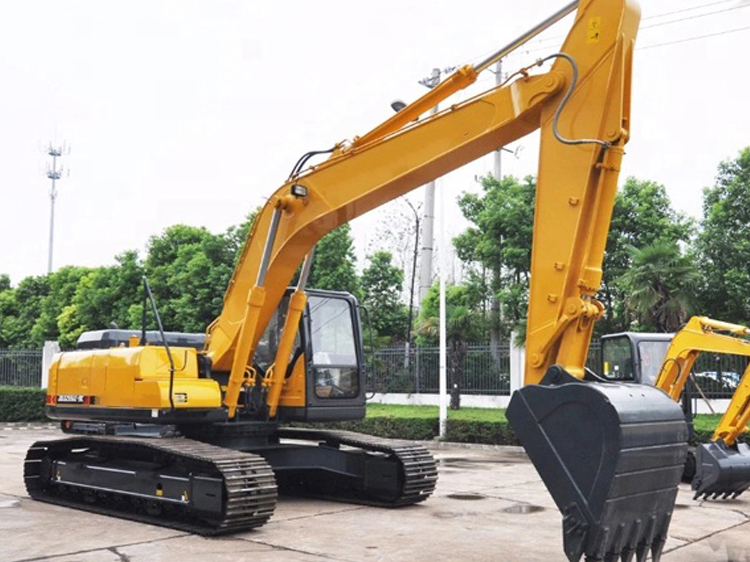

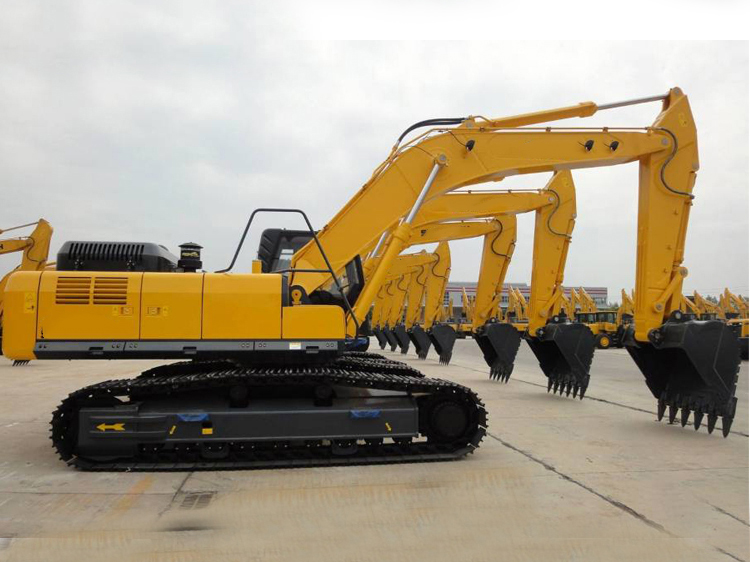

33 Ton Crawler Excavator GE330D

Cummins engine (conforming to Ⅱ-stage emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases; large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect

Aiming at the extremely harsh mining operation conditions, the heavy-duty reinforced boom, the mine-specific short stick and the large-capacity rock bucket are standard, and the extended and widened heavy-duty chassis is standard.

Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions;


Type4 Stroke,6 Cylinder in line ,direct injection, turbocharged
Min. ground clearancemm471
Main pumpK5V140DT
Main valveKAWASAKI
Slewing motorKAWASAKI
M5X180CHB
Travelling motorDoosan
Track xcmg
Turning radius of turntablemm3250
Wheel base of track shoemm4030
Standard track widthmm600
Ground pressureKgf/cm20.594
Bucket digging forceKn225
EmissionStage 2
Cooling typeWater cooled
Bore diameter × strokemm114×145
DisplacementL8.9
Rated powerkW/rpm241/2000
Max. touqueNm/rpm1400/1400
Rated diesel consumptiong/KW.h(rpm)217(2000)
Starter24V 8.5KW
GeneratorJFZ2725-010(28V-70A)
Battery2×12V×120Ah

3d0fc5650e9b216b236dfa8148d725fd.jpg4e0a242bc0367ce8a3b6a5bccaca2ec1.jpgcbaad293ef88ef815ca9b76206cf121a.jpgcbda231805f3cd0542d0e18792c2521c.jpgfe455108406fecddca3956d8d7c9a947.jpg
