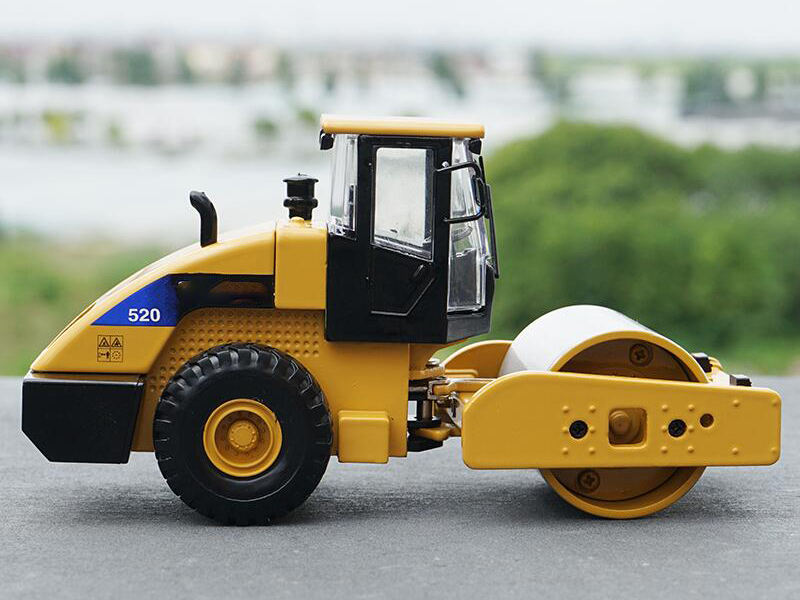

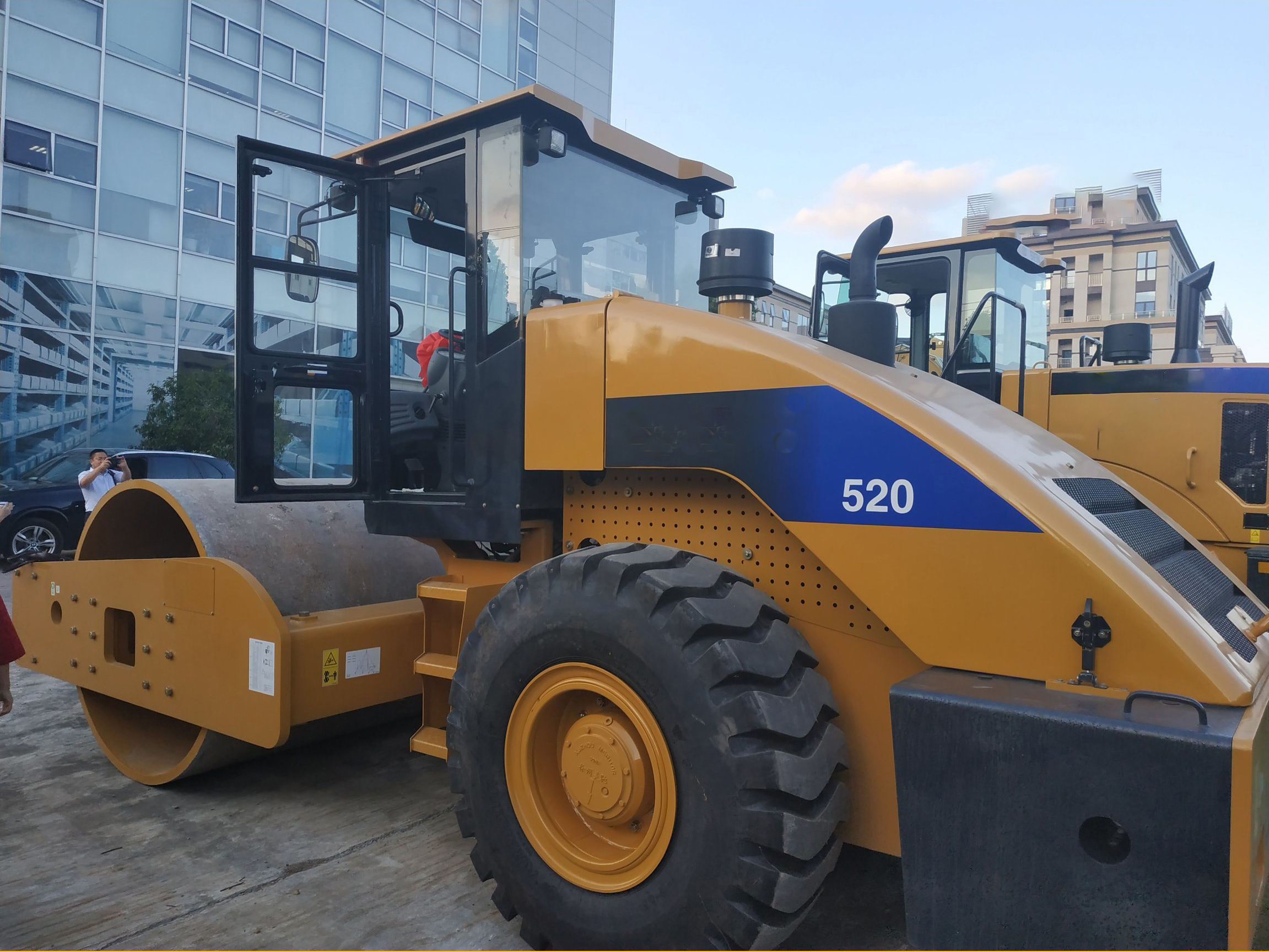

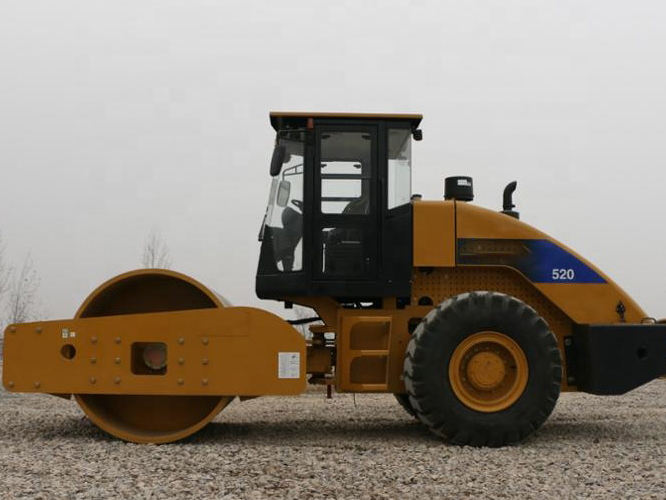

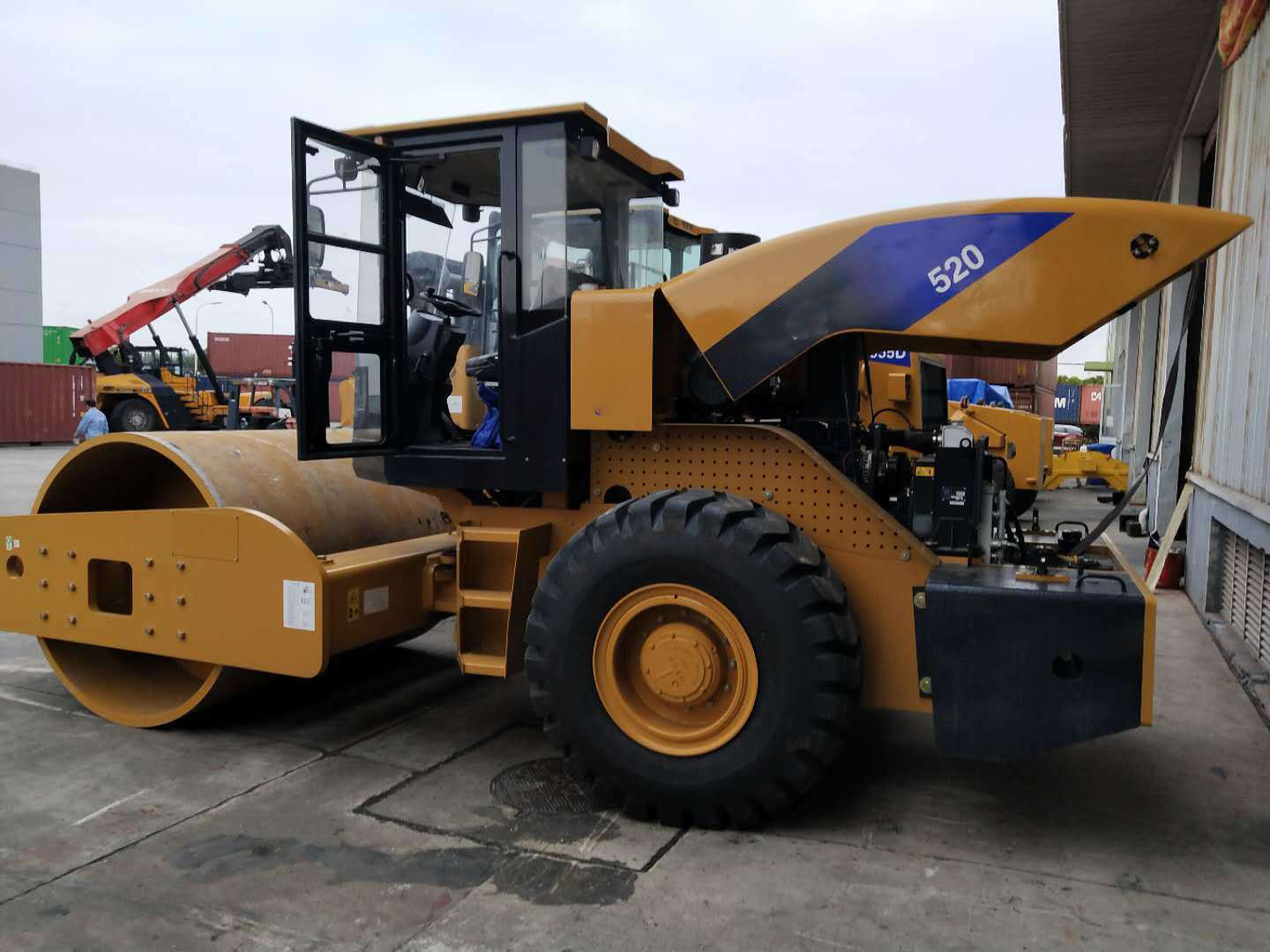

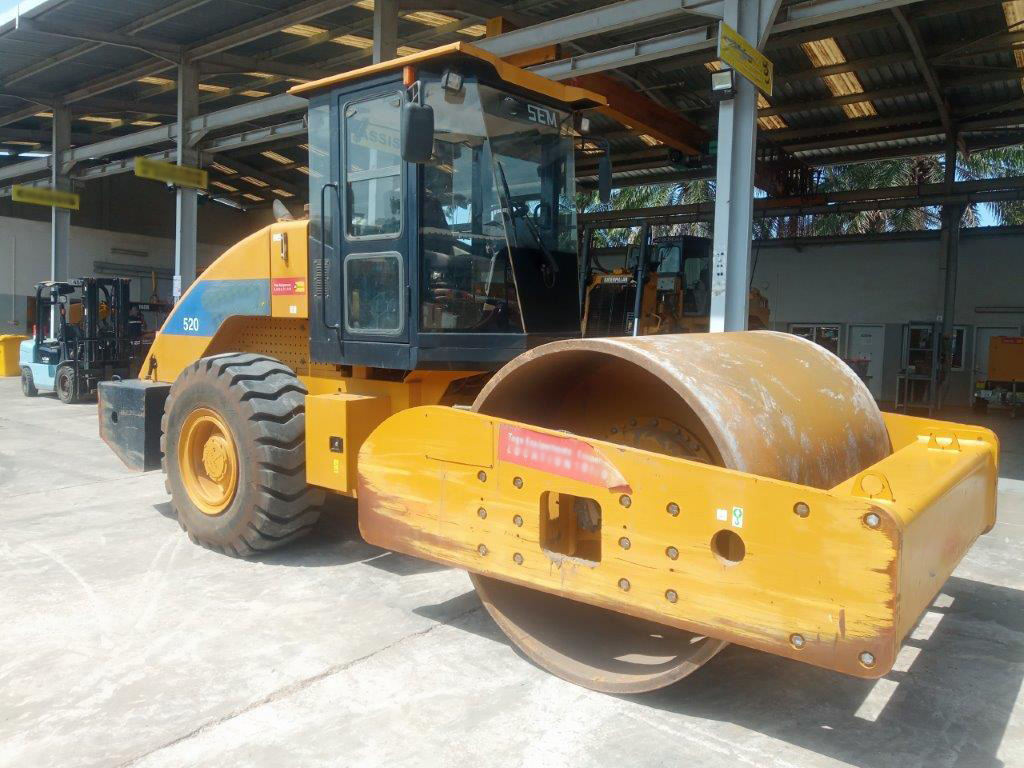

SEM SEM520 Road Construction Machinery Road Roller

KOMATCO > Products > Product Details

See Full Gallery (6-photos & videos)

Model:

SEM520

View All >

Category:

Road Construction Machinery

Product:

Road Roller

Brand Name:

SEM

Dimension (mm):

6250*2310*3200mm

Operating weight (kg):

20000kg

Origin:

China

Manual Download

Key Attributes

Engine Power:

129kw

Engine Brand:

Weichai/WP6G175E20

Vibration Frequency:

30/28HZ

Drum Width:

2130mm

Type:

20.5-25

Travel Speed:

2.98km/h~9.60km/h

Drum Diameter:

1600mm

Drum Thickness:

50mm

Excitation Force (High/Low):

360/208kN

Freqency-Hi/Lo:

30/28HZ

Packaging & Shipping

Overall Dimensions (L×W×H):

6250*2310*3200mm

Overall Weight:

20000kg

Shipping Method:

40FR

Delivery Period:

30 days

Certificate:

Origin:

China

HS Code :

8429401100

Detailed Specifications

SEM 20 Ton Vibratory Road Roller SEM520 Hydrualic Soil Compactor Machine

Key Features

Application/Versatility

Applications include road, railway, airfield and industry yard compaction
Optional diamond shape pad-foot roller for compacting clay soils
Optional square shape pad-foot roller for compacting sandy materials

High efficiency

50mm drum, compaction performance is 10%~15% better than competitors
Isolated modular cooling system, works in ambient temperature of 43 ℃

Reliability

Vibration system utilizes an eccentric vibe pod design, extends life up to 50%
Closed center hydraulic system, world famous piston pump and motor
Electronically controlled transmission, easy and comfortable to operate

Operation

Digital frequency meter, monitors compaction frequency
Three level alarm system and Engine speed guage monitor machine performance

Vibe Pod Design

Eccentric vibe pod design, extends system life by 50%
Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system
Completely sealed eccentric gear eliminates contamination, prolongs bearing life
SEM520/522 are equipped with a 50 mm thick drum compared to competitors with a 40 mm thick drum, provides increased compaction performance versus the competition

Cooling System

Isolated modular cooling system

Suction style fan pulls low temperature air through the radiator, providing superior cooling capability
Optional high ambient cooling system allows the machine to work in ambient temperature up to 50 ℃

Shunt tank provides constant system pressure and provides easy visual check of coolant level

Vibratory Hydraulic System

Closed center hydraulic system

Improves efficiency by 20% over the open center system
Reduces oil contamination, prolongs life of hydraulic system
Maintains higher pressure and smaller energy loss
Allows for simpler hose routing
Requires smaller volume hydraulic tank, reduces maintenance cost

World class vibratory hydraulic components

SEM518/520 utilize Sauer piston pump and motor
SEM522 utilize Rexroth piston pump and motor

Vibratory hose

Utilize Eton hoses and joints, high reliability
Optimized hose routing, prolongs hose life

Cat ® Product Link™

Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.

Powertrain

Electronically controlled transmission

Easier to shift, reduces operator fatigue and improves working efficiency
High reliability

Axle equipped with Proportional Torque differential (PTD)

PTD controls torque applied to the wheels based on ground conditions, improves overall traction
Grade ability is 34% compared to competitors' at 30%
Optimized transmission ratio, 1st gear has higher travel speed

Dashboard

Vibratory Frequency Meter

Continuously displays machine compaction frequency
Operator may select appropriate frequency to avoid excessive compaction

Three Level Alarm System

Machine will diagnose system issues and notify the operator with 3 levels of warning indicator lights and audio alarms

Specification:

Model
Model	SEM520
Engine Specification
Engine Model	WP6G175E20
Std Rated Power-Gross	129kW
Rated Speed	2,000r/min
Operating Weight	20,000kg
Fuel Tank Volume	262L
Operating Specifications
Max. Grade Ability w/o vibbration	34%
Turning Outer Radius	6,350mm
Static Pressure	461N/cm
Steering Angle	±33°
Swing Angle	±12°
Travel Speed
F/R I	2.98km/h
F/R II	5.88km/h
F/R III	9.60km/h
Hydraulic Cycle Time
Hydraulic Oil Tank Volume	80L
Vibratory System
Freqency-Hi/Lo	30/28HZ
Amplitude-Hi/Lo	2/1mm
Excitation Force (High/Low)	360/208kN
Dimensions
Drum Width	2,130mm
Drum Diameter	1,600mm
Drum Thickness	50mm
Tire Specs
Tires Type	20.5-25
